AutoHoot Relay Unit

AutoHoot Relay Unit

Regular price £42.25 ex VAT
Sale price £42.25 ex VAT Regular price ex VAT
Shipping and VAT calculated at checkout.

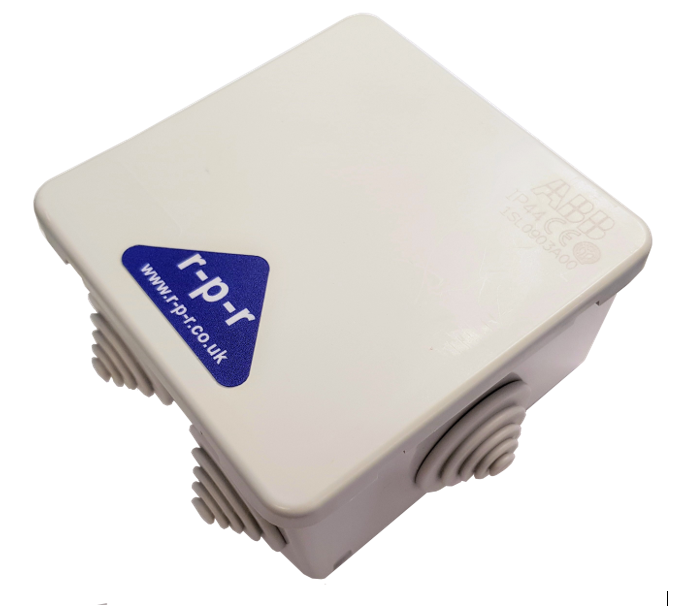

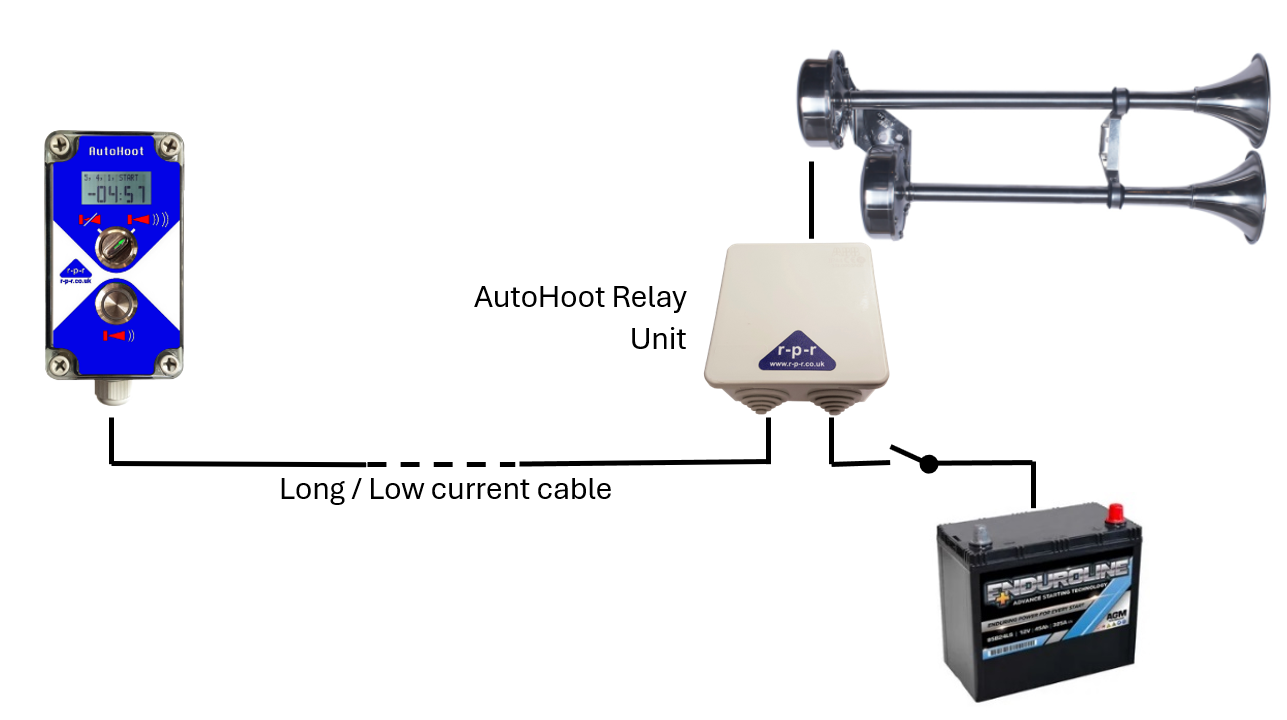

Horns can require high currents which limits the distance between the horn and AutoHoot. The AutoHoot Relay unit can be used to increase this distance or to enable a thinner cable to the AutoHoot to be used.
It can also be used when different supplies are required for the AutoHoot and the horn.

AutoHoot Relay Unit Benefits

• Simplified AutoHoot installation
• Enables a lighter weight cable or longer cable to the AutoHoot to be used

Specification

AutoHoot Relay Unit Specification
Physical
Dimensions (including cable glands) 101mm x 101mm x 49mm
Weight 130g
Enclosure material Thermoplastic material, self-extinguishing in compliance with UL 94
HB Standard and resistant to abnormal heat and fire up to 650°C
(glow wire flammability index) in compliance with IEC 60695-2-11
Standard
Cable entry Stepped (5,12,16,20 mm diameter) grommet type cable glands.
Relay switch
Maximum Current 20A For a load current duration of maximum 3s for a make/break
ratio of 1:10
Endurance >300,000 operations with resistive load at 20A at 12Vdc
Maximum operating voltage  20 Vdc
Relay Coil
Operate voltage 6.9 Vdc
Release voltage 1.5Vdc
Coil resistance 254 ± 10% ohms
Fuse
Type 20A micro-blade automobile fuse
Connections
Type Rising clamp style terminals (2.5mm2 cable)
Configurations

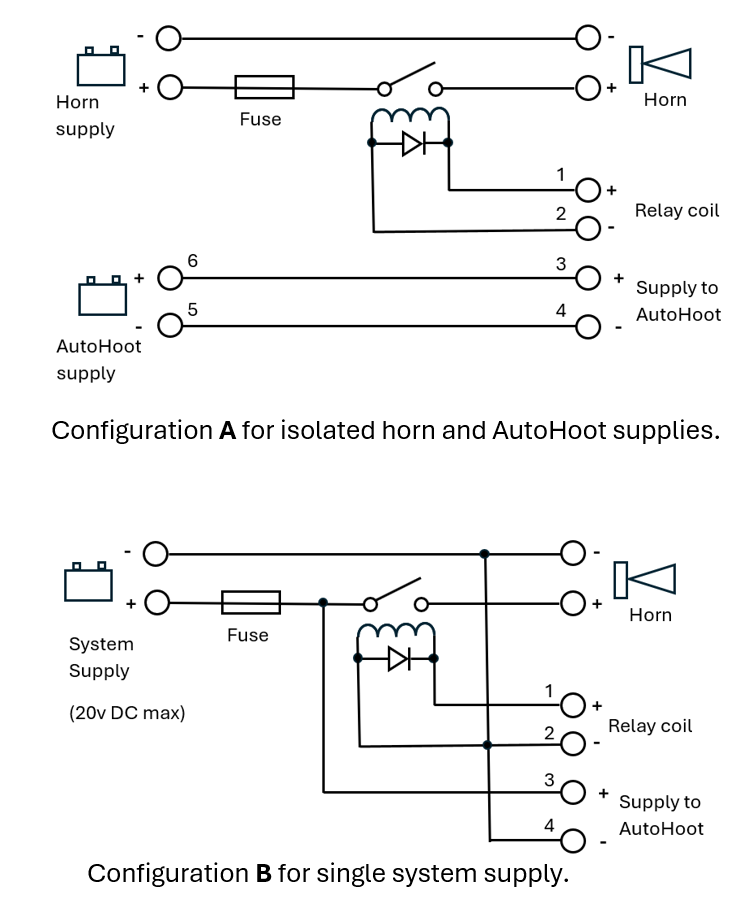

A A, for isolated horn and AutoHoot supplies
B B, for single system supply. Solder links Lk1, LK2, LK3 made
Environmental
Operating Temperature Range -20 °C to +60 °C
Storage Temperature Range -20 °C to +60 °C
Ingress Protection IP44
Compliance UKCA, CE
Guarantee
Guarantee 2 years (return to manufacturer)
The manufacturer reserves the right to amend the specification and therefore the information above may be subject to change. Please contact us for the latest information.
