Gill WindMaster Pro
Gill WindMaster Pro
Share

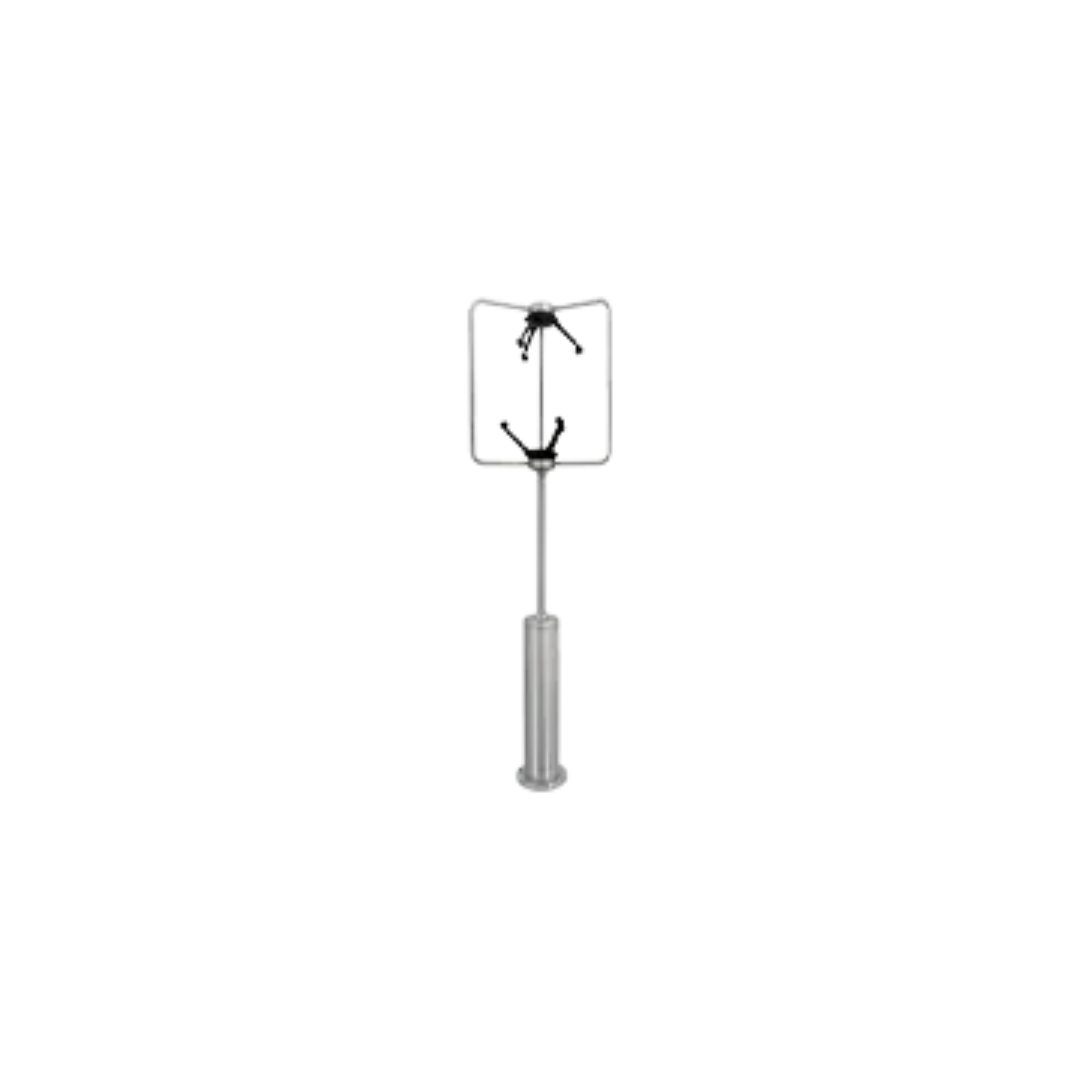

WindMaster 3-axis ultrasonic anemometers are used to gather high value information by a range of customers. Users include wind energy site surveyors, military engineers and research scientists. WindMaster has also been selected by a number of global OEMs and system integrators as a core sensor within their systems.
Models are also available with a horizontal head design for highly accurate vertical flow analysis or right-angled head design for restricted installation scenarios.
Typical Applications
- Wind energy site survey
- Military data collection and product development
- Integration into high accuracy OEM scientific products
- Scientific data collection, and control information on unmanned marine vessels
- Measurement of air turbulence: around bridges, buildings etc.
- Building ventilation control systems (inc. clean rooms)
- Meteorological and flux measurement sites
WindMaster 3-axis ultrasonic anemometers (wind sensors) - more details
Designed and manufactured by Gill Instruments in the UK, WindMaster 3-axis ultrasonic anemometers accurately and reliably measure wind speed and direction (or air flow) in three dimensions.
High performance measurement at fast output rates (up to 32Hz) allows WindMaster anemometers to provide data to inform research or provide control information to other systems such as building ventilation or unmanned vessels.
Output protocol options for the WindMaster range include RS232, RS422 & RS485 as well as current or voltage analogue output options.
Environmental protection to IP65 across all WindMaster models.
Ultrasonic technology provides accurate and reliable wind speed and direction data using solid state technology, with no moving parts, reducing the need for maintenance and making WindMaster ideal for harsh weather environments and remote locations.
Features
- High quality 3-axis (3D) measurements up to 65m/s (234 km/h) dependent on model
- Data reporting up to 20Hz with option up to 32Hz
- 12 bit digital data with options for 14 bit digital or analogue outputs
- Robust design and construction
- Multiple mechanical designs support a range of applications
- Comprehensive support includes software and technical advice
Specification
- 32Hz data output rate
- 0-65m/s (234 km/h) wind speed
- Optional analogue inputs and outputs plus PRT available
- Robust stainless steel construction
Contact us on +44 (0) 1590 641223 or email sales@r-p-r.co.uk to place an order.
