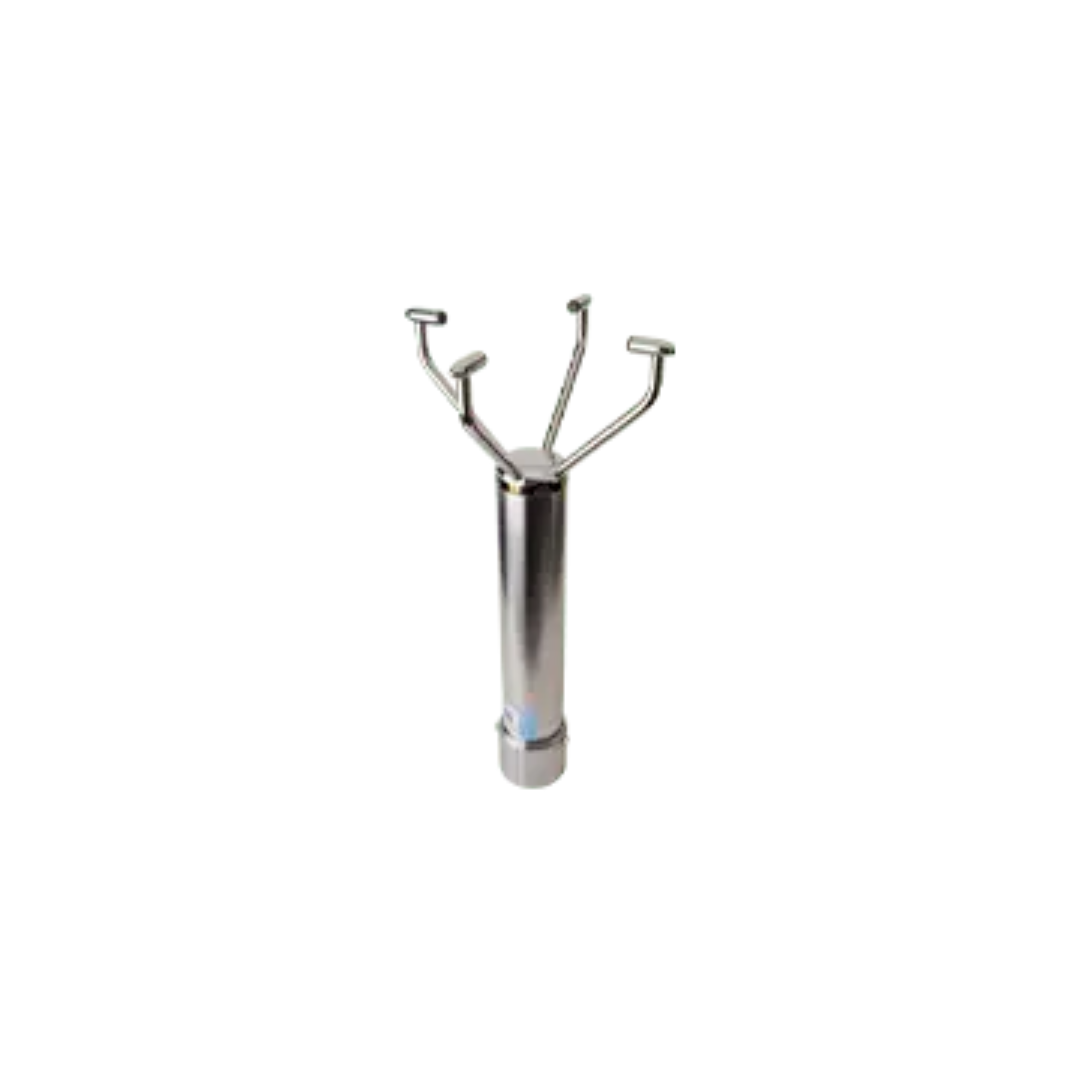

Gill WindObserver 65

Gill WindObserver 65

£2,390.00 ex VAT
£2,390.00 ex VAT ex VAT
Shipping and VAT calculated at checkout.

WindObserver ultrasonic anemometers have a proven record of providing reliable data in critical applications. The product has been selected for use by commercial marine businesses and national navies across the world, as well as being deployed at a range of high volume international airports.

Typical Applications
  • Wind speed and direction observation
  • General purpose marine use (models with Lloyds Register Type Approval)
  • Dynamic positioning systems
  • Airport weather systems (FAA & CAA approved models)
  • Low temperature applications
  • Turbine control
  • Intrinsically safe applications including offshore rigs
WindObserver robust ultrasonic anemometers (wind sensors) with many approvals - more details

Designed and manufactured by Gill Instruments in the UK, WindObserver ultrasonic anemometers are well proven with over 15 years’ service worldwide over a range of demanding applications.

Quality and high performance measurement is assured across the WindObserver range. WindObserver anemometers have sophisticated error checking and fault reporting built-in. An instrumentation status code is transmitted alongside the measurement outputs to confirm correct operation ensuring confidence in reported data. Calibration (option) traceable to national standards available on all models (except WindObserver IS).

WindObserver anemometers hold many approvals and certifications for critical applications including those required for hazardous areas (including offshore), marine, wind turbine control and airport wind measurement.

Output protocol options for WindObserver include RS422/RS485 full duplex/half duplex for WindObserver 65, 70, 75, 90 and II.   WindObserver IS, intrinsically safe anemometer, RS422 & RS232 from power supply and interface. RS422 from anemometer.

Environmental protection to IP66 with robust stainless steel construction across all WindObserver models.

Gill ultrasonic technology provides accurate and reliable wind speed and direction data using solid state technology, with no moving parts, reducing the need for maintenance and making WindObserver ideal for harsh weather environments and remote locations.

Features

  • High quality wind measurements up to 65m/s (234 km/h) for normal use
  • Models available up to 90m/s (324 km/h) for extreme conditions
  • Unheated and heated models to match application and available power
  • Robust stainless steel construction for challenging environments
  • Intrinsically safe models available (ATEX, IECEx & UKEX certification)
  • Comprehensive support includes software and technical advice

Specification

  • 0-65 m/s (234 km/h) wind speed
  • 0-360° wind direction
  • IP66 rated stainless steel housing
  • Lloyds Register Type Approved
  • Anti-icing heating option (-55°C to +70°C)
  • Averaging/gusts to WMO guidelines

Documentation
