MetConnect THP – Weather System

MetConnect one is a professional weather station designed to monitor a full-range of weather parameters with an easy-to-use setup. MetConnect allows users to build the system they need with several integrated sensors for us

Designed and manufactured by Gill Instruments in the UK, MetConnect weather stations are the result of over 35 years of experience designing products for the professional weather market, and builds on the success of MetPak.

The Flexible high quality platform is the essence of MetConnect, allowing the user to select the sensors most relevant to their application, and easily combine data from those sensors with data from MetConnect’s integrated sensors. This approach reduces power and communications complexity and provides time synchronized data from multiple sensors.

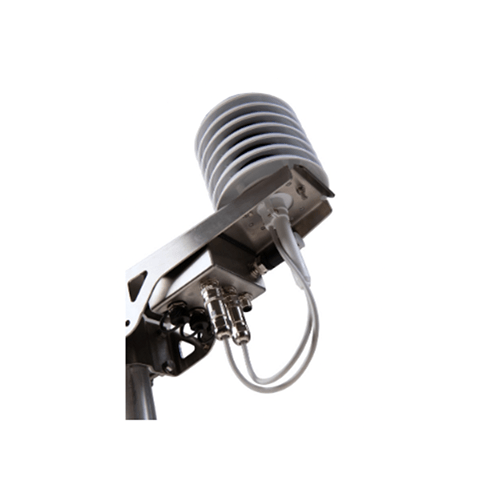

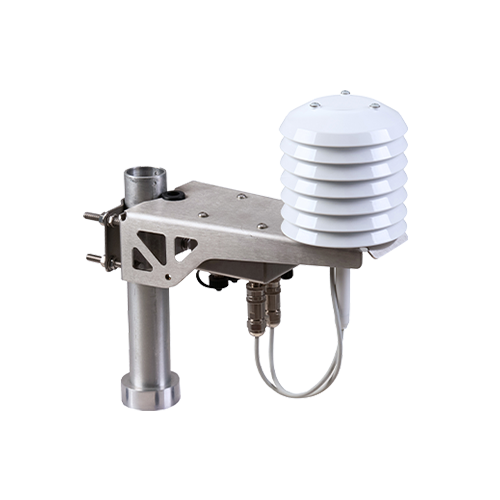

MetConnect One is an easy to use integrated weather station. MetConnect THP is available if the application does not require wind measurement or the user wishes to select a remote anemometer.

Output protocol options for MetConnect weather stations include RS232, RS422, RS485, SDI-12 and MODBUS.

Environmental protection to IP66/67 with easy to use, robust connectors.

Ultrasonic technology allows MetConnect to deliver highly accurate measurements with no moving parts to wear or recalibrate. As a result, MetConnect is extremely reliable and low maintenance.

e in a variety of industries with four integrated sensors – wind (speed and direction) temperature, humidity and pressure.

Three double-louvered naturally aspirated radiation shields deliver long term highly accurate weather data. Parameters measured include temperature, relative humidity, barometric pressure, absolute humidity, air density and wet bulb temperature. In addition, an integrated optical rain gauge senses rainfall as it hits its surface, automatically measuring the raindrops’ size and quantity. It then records the data from which it calculates and formats the output as if it were a traditional tipping bucket rain gauge in serial format.

The result is an extremely durable and cost effective maintenance free weather station, widely used for applications such as agriculture, health & safety, transport, education, energy and building controls.

Richard Paul Russell Ltd. can connect the sensor to the WeatherFile.com website where data can be viewed using any internet connected device and downloaded for detailed analysis in a .CSV file format.

Features

• High quality sensors provide reliable measurements
• Configurable to single line output for easy data collection
• Connector inputs available for additional user selected sensors
• Easy connection and minimal maintenance required
• Robust stainless steel construction for challenging environments
• Comprehensive support includes software and technical advice

Specifications

Parameter	Specification	Notes
Air Temperature	-35°C to +70°C	Accuracy: ±0.2°C
Relative Humidity	0-100%	Accuracy: ±1.5% RH at 25°C (0-80%RH)
Barometric Pressure	Range: N/A	Accuracy: ±0.5 hPa (0 to 50°C), Resolution: 0.1 hPa
Additional Inputs	Various (e.g., for Gill Instruments anemometer)	Contact Gill Instruments for details
Outputs	Digital Comms Modes: RS485, MODBUS	1 measurement per second
Power Supply	5-30V DC, 60mA @ 12V
Connectivity	M128 8-way connectors	On all inputs and outputs
Weight	30 kg	Stainless steel 316 construction
Environmental & Regulatory	IP66 & IP67, CE, UKCA, FCC Part 15	Operating temp: -35°C to +70°C, Storage temp: -40°C to +70°C
Warranty	12 months	UK origin
Software	Downloadable, free of charge	For setup and data display/logging
