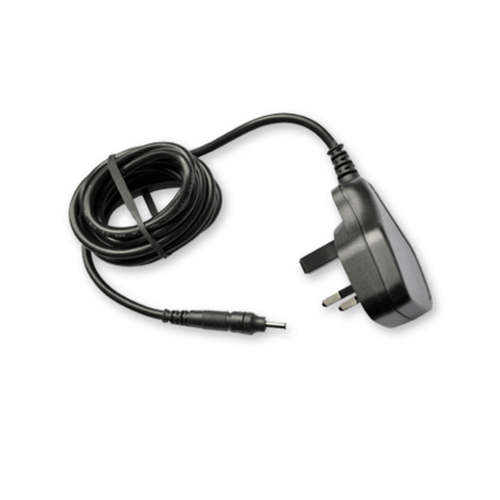

Power Supply 12V
Power Supply 12V
Regular price
£22.00
Sale price
£22.00
Regular price
Unit price
/
per
Shipping and VAT calculated at checkout.
💳️ Payment & Security
Your payment information is processed securely. We never store or have access to your card information.
🌐 International Delivery
We ship globally with trusted courier partners for seamless international delivery.
Expected UK delivery date
23 Dec
Shipped within 24 hours (in-stock products). Expected delivery within 2-3 working days.
Couldn't load pickup availability

Features
| Specification | |
|---|---|
| Specification | Conforms to IEC 60950 |
| Voltage | 12 V |
| Current | 270 mA |
| Characteristics | |
|---|---|
| • Universal input 100 to 240 V AC • Constant voltage, current limited • Low leakage current ≤10μA • Low standby power ≤0.3 Watts • Continuously short circuit proof |
|
| Technical Specification | |
|---|---|
| • Input Voltage 100 to 240 V AC (±10%) • Input Current approx. 90 mA • Frequency 50 to 60 Hz • Efficiency 75% typ. at full load • EMC Conforms to EN 55011, EN 55014, EN55022/B, FCC 47 part 15, EN 61000-3-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 • Output Voltage Tolerance ±5% |
|
| Environmental Specification | |
|---|---|
| • Operating Temperature 0 to 40°C at maximum load • Storage Temperature -20 to 70°C • Humidity 5% to 95% non condensing • Input Transient Susceptibility Complies with IEC61000 requirements |
|
| Reliability Specification | |
|---|---|
| • MTBF Calculation 200.000 hours at maximum load and an ambient temperature of 25 °C (in accordance with MIL-HDBK-217) | |
| Mechanical Specification | |
|---|---|
| • Weight approx. 60g • Plug Connector AC input: UK DC output: Universal output plug system |
|
