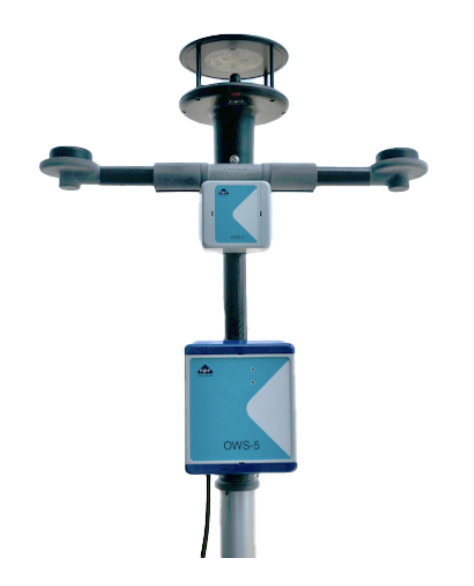

OWS-5 Monitoring System

Name: OWS-5 Monitoring System
Brand: Richard Paul Russell
SKU: WS-GIL-METCONONE-1733-PK-120
Price: 8503.63 GBP
Availability:  InStock

£8,503.63 ex VAT

£8,503.63 ex VAT ~~ex VAT~~

Versand wird beim Checkout berechnet

Anzahl

WeatherFile Remote System Station Description

WeatherFile OWS-5 was developed in partnership with the English Institute of Sport and the British Olympic team to provide an accurate measurement of wind speed and direction relative to the ground from a moving platform (sailing coach boat (RIB)). Other applications include rowing coach boats, regatta committee boats, cycle race chase cars, wind turbine transfer vessels, ferries etc. The great advantage of OWS-5 is it requires no calibration when in use.

To discuss your OWS-5 system requirements please contact our technical team on +44 (0) 1590 641223 or email sales@rpr.co.uk

Features

• OWS-5 delivers accurate true wind speed and wind direction from a moving platform
• Parameters include true wind speed, wind direction and air temperature
• No calibration required
• Uses an ultrasonic wind sensor and high precision Vector GPS compass
• Local data display using Android or iOS tablet
• Cloud based logging via the mobile cellular network

Specification

Windsonic	Windsonic 1 Output functions: Sensor ID, Wind speed, Wind direction, Units, Status Output rate: 4 Hz Output format: RS232 serial data
Position/speed/course/(heading) sensor	Dual antenna GPS Compass with IMU
Main processor	Custom single board embedded microprocessor with serial and WiFi interfaces
System output	WiFi: Time, position, ground wind speed, ground wind direction, tide determination available via http
Display unit	Android app for Smartphone, etc.
Power Requirements	<300mA at 12V dc. Power supplied from outlet socket on RIB
Electronics Enclosure (excluding tablet/smartphone)	IP67 rate enclosure
Carry Case	Flight case: 750mm x 170mm x 260mm Weight with OWS-5: 6.6kg
Wi-Fi	Wi-Fi Certified 2.4GHz IEEE 802.11n Security WPA-2
Mobile 3G/4G	LTE FDD: Band 1(2100 MHz)/Band 3(1800 MHz)/Band 7(2600MHz)/Band 8(900MHz)/Band 20(800 MHz) DCHSPA+/HSPA+/HSPA/UMTS: Band 1(2100 MHz)/Band 8(900 MHz) EDGE/GPRS/GSM: Band 2(1900 MHz)/Band 3(1800 MHz)/Band 5(850 MHz)/Band 8(900 MHz) (Contact RPR Ltd for other options)

The specification is correct at time of publication (June 2020).
The manufacturer reserves the right to amend the specification and therefore the information in this document may be subject to change.

Documentation

User Manual

Data Sheet
