WeatherFile (PRO) Principal Race Officer System

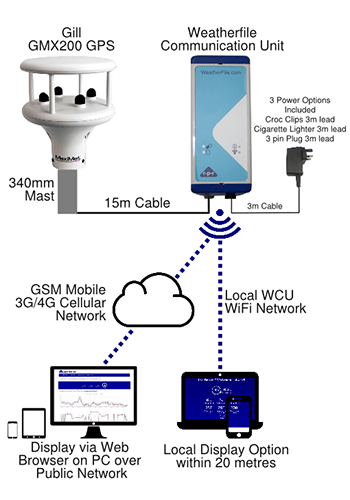

The PRO system combines a state-of-the-art Gill MaxiMet GMX200 (GPS) sensor delivering extremely accurate wind speed and direction measurements, with a built-in compass automatically calculating north even if the committee boat is swinging under anchor.
Data transfers over WiFi to a tablet or smartphone within 20 metres. The data display delivers live wind speed and direction data every 10th second shown as a compass rose in degrees. In addition, rolling averages are shown in graph format and updated every 2 seconds, the rolling average interval can be set at either 1, 3 or 5 minute periods and shows the last 2 hours of data.

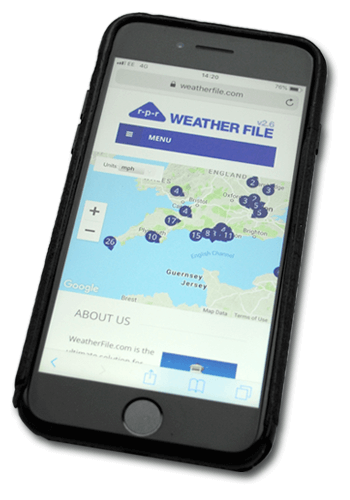

Additionally, data is sent via GSM mobile connection (3G/4G) to the WeatherFile.com website enabling viewing by any internet connected device from any location. For post-race analysis and graphing, data can be downloaded in .CSV (Excel) format.
The unit comes complete with a foam padded, waterproof and durable IP67 rated carry case, mast, jubilee clips and 3 methods of power attachment; crocodile clip, cigarette lighter and mains adaptor plug enabling quick setup and attachment to the committee boats (12Vdc) battery or any other 12Vdc battery source.
For further information and to discuss you specific requirements please call us on +44 (0) 1590 641223 or email sales@r-p-r.co.uk.
Item Contents
• Sensor: Gill MaxiMet GMX 200 sensor with GPS
• WeatherFile Communication Unit (WCU)
• Mounting mast: 340mm long
• 2 x Jubilee clips
• 15m RS232 cable complete with connectors
• Connection to WeatherFile.com website
• 3 x 3m 12Vdc battery power leads; crocodile clips, main adaptor & cigarette lighter
• IP67 rated foam padded carry case
• 3G/4G SIM card
Features
• Gill MaxiMet GMX 200 sensor with GPS
• Wind speed & direction, apparent wind, WMO wind averages, gusts & true wind
• Built in compass with automatic north alignment
• GPS positioning
• Short anodised aluminium mast, 340mm length with jubilee clips for fast setup
• 15 metres RS232 cable with Binder connectors
• WeatherFile Communication Unit (WCU) transfers data to WeatherFile.com
• Secure standalone GSM mobile connection (3G/4G)
• Live data within minutes via WeatherFile.com

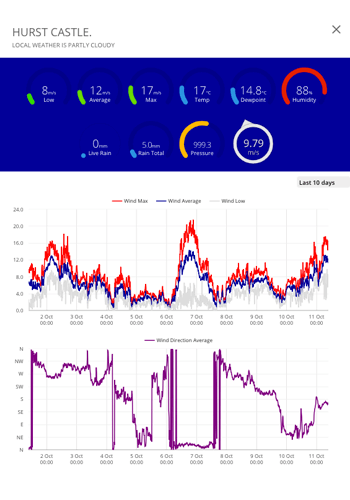

• Data can be downloaded from WeatherFile.com for post event analysis and graphing
• Email alert functionality when user defined wind speed thresholds have been exceeded
• Local display via smartphone, tablet or PC within 20m of WCU
• Live wind speed and direction data
• Rolling average of last 2 hours data (1,3 or 5 minutes averaging options)
• Maintenance-free, super-accurate sensors resulting in a cost-effective long-term solution
• 2 year warranty as standard
Specification
| Sensor | Gill MaxiMet GMX200 GPS |
| WeatherFile Communication Unit (WCU) | Link to WeatherFile Communication Unit (WCU) spec page |
| Mounting Mast for Gill Sensors | Height: 340mm Diameter: 44.45mm OD Drilled and tapped (MS) Anodised aluminium alloy, depth of 15 microns |
| RS232 Cable | Diameter: 4.8mm Length: 15m Weight: 0.65 kg approx Construction: 5 core, tinned copper conductor 24(7) AWG, 0.22mm2, PVC insulation, Cores laid up, overall aluminium/polyester foil screen, tinned copper drain wire (24AWG), PVC sheath. |
| Power Supply | 1. 12Vdc UK mains adaptor plug. 2. crocodile clips. 3. Cigarette lighter 3m cable Binder plug connector |
| Carry Case | IP67 Rated Foam Padded Internal Dimensions: Length 538mm, Width 405mm, Depth 245mm External Dimensions: Length 594mm, Width 473mm, Depth 270mm Weight: 5.3kg without system, approx 8kg complete |
