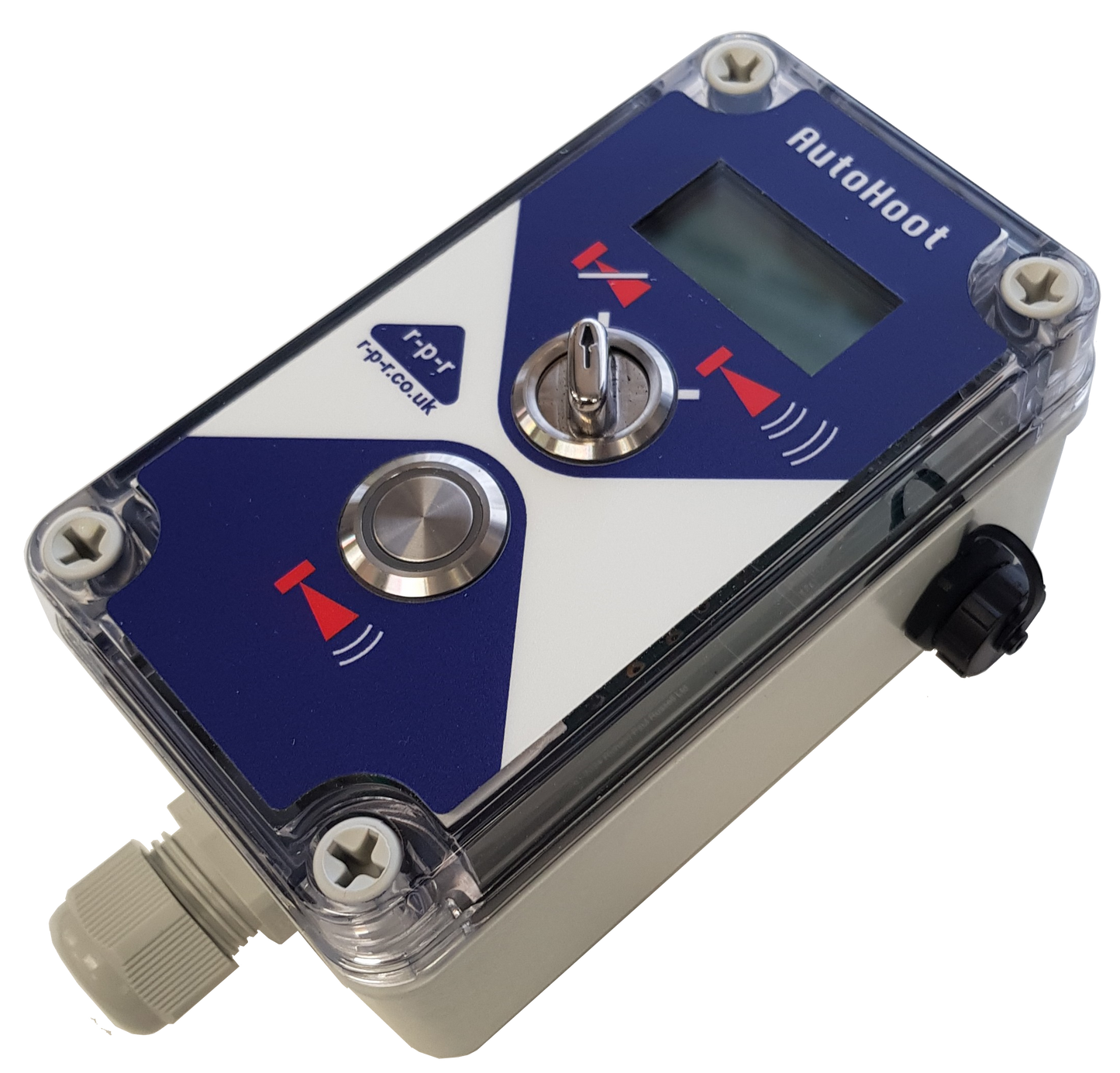

AutoHoot MK3c with USB-C connector

Name: AutoHoot MK3c with USB-C connector
Brand: Richard Paul Russell
Price: 292.0 GBP
Availability:  InStock

£292.00 ex VAT

£292.00 ex VAT ~~ex VAT~~

Shipping and VAT calculated at checkout.

AutoHoot Mk3c option has a waterproof USB-C connector on the side of the unit for easy connection to a computer/smart device. It is supplied with a 2m USB-C cable with matching waterproof connector. Note care should be taken not to expose the USB contacts to water and the cap or the supplied USB cable should always be properly in place in situations where the AutoHoot is exposed to water.

AutoHoot Benefits

• Simplified error-free starting sequences
• Guaranteed accurate timings
• Reduces workload and stress
• Clear indication of the time to the start
• Auto-repeat capability for successive starts
• Easy to use, compact & affordable

Specification

AutoHoot Mk3	Specification
Physical
Dimensions (including switches and cable gland)	168mm x 80mm x 76mm
Enclosure dimensions (excluding switches and cable gland)	140mm x 80mm x 68mm
Mounting holes	4 off 4.4mm dia., 120mm x 60mm
Enclosure material	Polycarbonate, Light Gray RAL 7035
Enclosure flammability rating	UL 746C 5V
Weight	335g
Cable entry	Compression cable gland. With two-part compression ring. Cable diameter 5 to 13 mm
Sequences
Pre-programmed sequences	Selectable by switch sequence on power up
Custom sequences	User programmable via standard C type USB Cable
Switches
Auto Switch	Stainless steel 2 position rotary switch with green illuminated arrow. IP67 rated
Hoot Button	Stainless steel push-button switch with red illuminated ring. IP67 rated
Relay (Horn Connection)
Rated current	20A
Endurance	>300,000 operations with resistive load at 20A
Connection	Rising clamp style terminals (2.5mm² cable)
Display
Type	High-contrast supertwist LCD
Viewing angle	6 o’clock
Viewing area	19mm x 38mm
Time
Time accuracy	±2 ppm at 25 °C (ageing first year ±3 ppm max at 25 °C)
Power
Supply voltage	6.5 to 20 Vdc
Current at 12 Vdc	30 mA typical (with LEDs on, excluding horn current)
Supply Input protection	Polarity reversal protected. Internal replaceable fuse – 20A microblade automobile fuse
Connection	Rising clamp style terminals (2.5mm² cable)
Back up battery for time	CR2032
Back up battery life	>5 years
Environmental
Temperature range	Operating range: -20°C to +70°C Storage range: -20°C to +70°C
Relative Humidity	0% to 100% (non-condensing)
Ingress Protection	IP66
Compliance	UKCA, CE, FCC, ICES-003
Guarantee	2 years (return to manufacturer)
