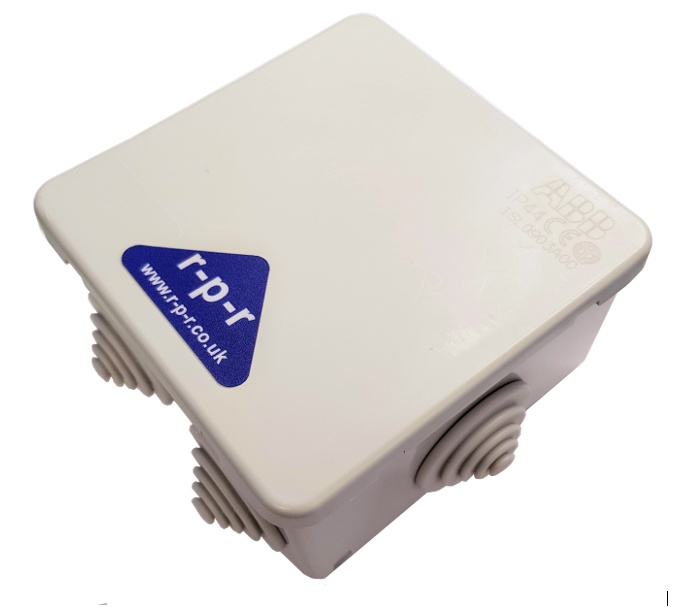

AutoHoot Relay Unit

£42.25

AutoHoot Relay Unit	Specification
Physical
Dimensions (including cable glands)	101mm x 101mm x 49mm
Weight	130g
Enclosure material	Thermoplastic material, self-extinguishing in compliance with UL 94 HB Standard and resistant to abnormal heat and fire up to 650°C (glow wire flammability index) in compliance with IEC 60695-2-11 Standard
Cable entry	Stepped (5,12,16,20 mm diameter) grommet type cable glands.
Relay switch
Maximum Current	20A For a load current duration of maximum 3s for a make/break ratio of 1:10
Endurance	>300,000 operations with resistive load at 20A at 12Vdc
Maximum operating voltage	20 Vdc
Relay Coil
Operate voltage	6.9 Vdc
Release voltage	1.5Vdc
Coil resistance	254 ± 10% ohms
Fuse
Type	20A micro-blade automobile fuse
Connections
Type	Rising clamp style terminals (2.5mm² cable)

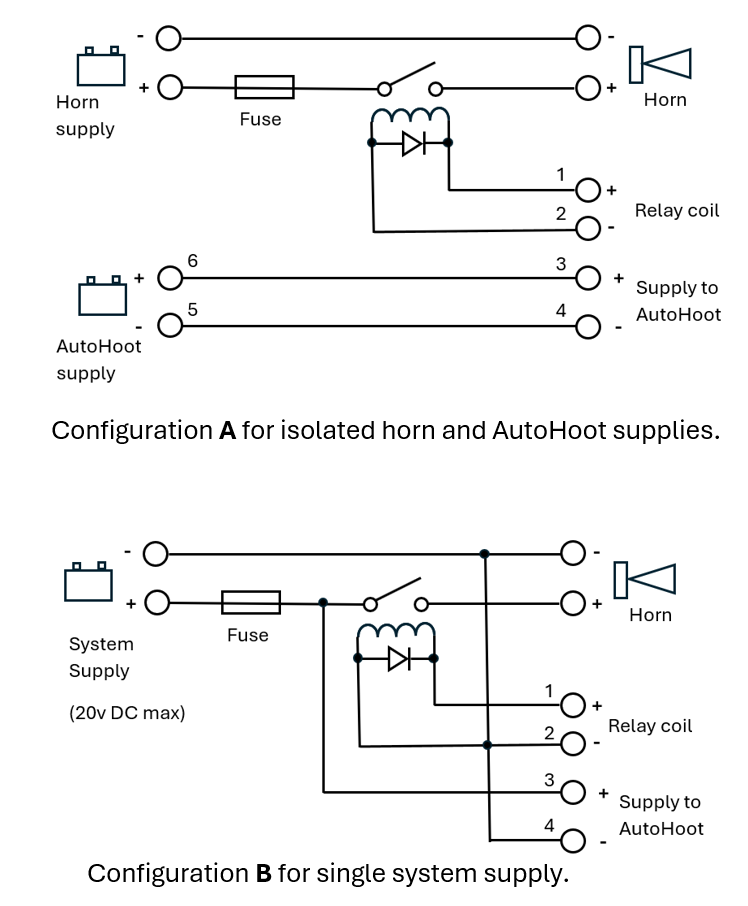

Configurations
A	A, for isolated horn and AutoHoot supplies
B	B, for single system supply. Solder links Lk1, LK2, LK3 made
Environmental
Operating Temperature Range	-20 °C to +60 °C
Storage Temperature Range	-20 °C to +60 °C
Ingress Protection	IP44
Compliance	UKCA, CE
Guarantee
Guarantee	2 years (return to manufacturer)
