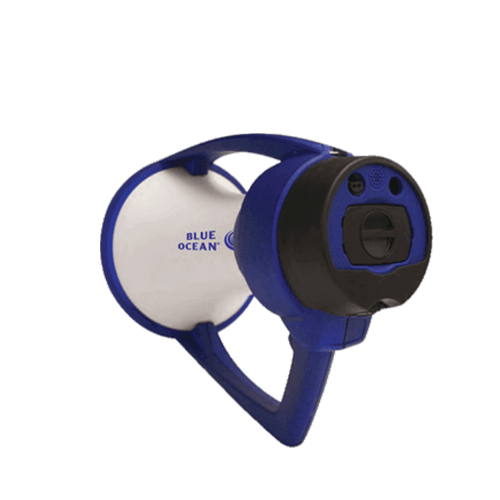

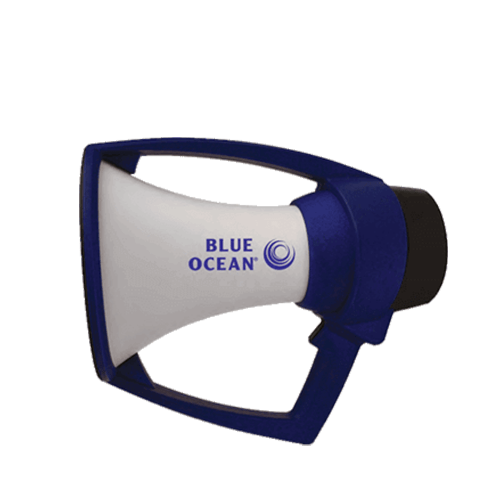

Blue ocean Megaphone
Blue ocean Megaphone
The Blue Ocean megaphone was the outcome of a design process focused on satisfying a need clearly identified from users of standard megaphones confronting the following issues:
Features
• Cracking Horn – Blue Ocean Megaphone uses a highly impact resistant plastic wrapped with super comfort handles maximizing grip and protection
• Hit Megaphone Multiple Times To Operate – Built with a high quality digital amplifier and carefully sealed components preventing wiring shortages
• Water Getting In Megaphone – The Blue Ocean Megaphone is completely waterproof
• Muffled Distorted Sounds – The high quality digital amplifier delivers a crystal clear high quality sound
• Sound Too Quiet – The digital amplifier allows for loud and long range amplification
• Megaphone Too Heavy – The Blue Ocean Megaphone has no bulky batteries and comes with a super light rechargeable battery pack, minimising weight
• Battery Cost High – The Blue Ocean Megaphone’s rechargeable batteries keep costs low
• Battery Door Breaks – A simple twist in battery housing removes need for battery door
• Microphone – Location at the top of the unit allows for clear sight above the megaphone while speaking into it
• Protective Bumper – Adds in shock absorption and protection. Great at protecting when horn is places face down
• Wrap-around Handles – For an easy and comfortable grip
• Microphone Connector – If you own a Cox Box, it uses the same connector
• Siren/Horn Button – Loud alerts to grab people’s attention from a distance
• Rechargeable Battery – Removable and compact, it eliminates the hassle of replacing multiple batteries, wasting money each year
• Battery Lock – Ensures your battery will stay locked in place no matter how you use your megaphone
• Volume & Power – Large dial and convenient location makes for easy adjustments
• Optimal Shape – Designed to deliver the loudest, clearest sound
Benefits
• Waterproof & Floats
• Very Drop Resistant
• Bounces without Breaking
• Meets MIL-STD-810G Transit Shock Standard
• Extremely loud
• Clear sound
• Long-lasting battery
• Durable
• Built to Last
• Five-year warranty
Colours
• The Blue Ocean Rugged Megaphone is available in White & Blue or Military Green & Tan
Typical applications
• Coaches
• Rowing
• Swimming
• Sailboat racing
• Youth sports
• Kayaking
• Military Police
• Fire-fighters
• Coastguard
• Harbour management
Specification
| Physical | Dimensions | Megaphone: 12.75 x 12 x 8.5 in / 31.75 x 30 x 21.25 cm Battery Charger: 2.5 x 4.25 x 32.5 in / 6.25 x 10.75 x 8.25 cm Battery Pack: 3 x 2 x 1.55 in |
| Weight | Megaphone: 3.4 lbs. with battery pack installed Battery Charger: 13.6 oz. / 385 g Battery Pack: 3.8 oz. / 108 g |
|
| Shell material | Polycarbonate | |
| Sound output | Power output | 22 watts peak, 19 watts rated |
| Microphone | Dynamic weatherproof | |
| Amplifier | High-efficiency Class-D digital amplifier | |
| Power | Battery pack | NK Blue Ocean Lithium-Polymer Battery Pack – PN 0105 11.1VDC Typical, 11.1Whr |
| Battery charger | NK Blue Ocean Battery Charger – PN 0106 Input Voltage: 90-264VAC, 50-60Hz, 7 Watts Universal input capable – compatible with all world currents with appropriate adapter plug |
|
| Battery capacity | Dependent upon volume and continuity of operation. 8 hours typical operation – defined as speaking 35% of the time at volume level 6. 30 hours of standby time | |
| Battery life cycle | 80% rated capacity after 300 charge/discharge cycles 60% rated capacity after 500 charge/discharge cycles | |
| Environmental | Temperature range | Charging 0°C to 45°C / 32°F to 115°F Storage and Use -20°C to 45°C / -4°F to 115°F (Battery capacity significantly reduced below freezing.) |
| Water resistance | IP-67 (Excludes all dust and excludes water for 30 minutes at 3.3ft / 1M submersion) | |
| Buoyancy | Megaphone with battery pack installed floats. Battery pack alone and charger do not float. |
|
| Drop resistance | MIL-STD-810F 516.5 Procedure IV Transit Shock, drop height 36 in/91 cm onto plywood over concrete | |
| Compliance |
FCC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.IC This Class B digital device complies with Canadian ICES-003.CE Conforms with Council Directive 2004/108/EC (12/15/2004) on Electromagnetic Compatibility.ROHS RoHS (Reduction of Hazardous Substances) compliant.
WEEE |
The manufacturer reserves the right to amend the specification and therefore the information in this document may be subject to change.
