FlexiMet Power Supply Unit
FlexiMet Power Supply Unit

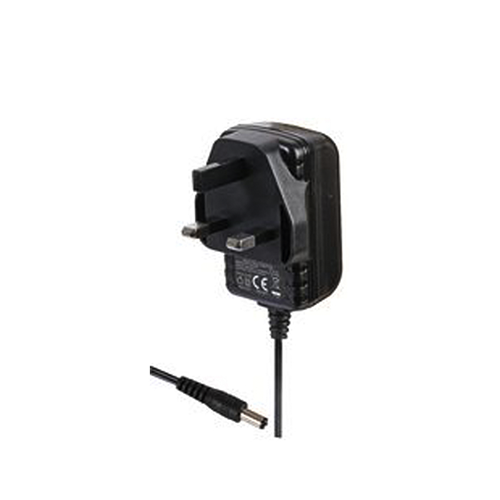

The 12V DC mains power adaptor is supplied with a 3m cable as standard with the WeatherFile and FlexiMet systems and is RoHS compliant, please see specification tab for full details.
FlexiMet Power Supply Unit is used to power FlexiMet and WeatherFile systems when using a WS-15A display. If your WeatherFile system is powered directly through the WeatherFile Communication Unit (WCU) please see the WeatherFile Power Supply Unit.
RPR Ltd can supply bespoke cable lengths and connectors on request, please contact our technical team on +44 (0) 1590 641223 or email sales@r-p-r.co.uk to discuss your requirement.
Features
• Single Fixed Output
• Efficiency Level: VI
• 2.1mm × 5.5mm × 12mm DC Connector Polarity +ve Centre
Specification
Input Voltage | Rated Input Voltage: 100V to 240V AC Variable Input Volage: 90V to 264V AC Input Current: 0.4A Max (when input rated voltage and output rated load) |
Input Frequency | Rate Frequency: 50/60Hz Variation Frequency: 47 to 63Hz In-rush Current: 60 Amps Max. Cold start at 240V AC input, with rated load and 25°C ambient AC leakage Current: 0.25mA Max. At 240V AC input Rated Output Power: 12W Output Voltage: 12V Output Current: 1A Output Power: 12W Operating Temperature: 0°C to +40°C Storage Temperature: -10°C to +55°C |
The manufacturer reserves the right to amend the specification and therefore the information in this document may be subject to change.
