Kestrel 3550FW Fire Weather Meter with LiNK
Kestrel 3550FW Fire Weather Meter with LiNK
Fighting wildfires and protecting lives, property and communities demands accurate weather monitoring and the ability to quickly share data to maximise fire personnel safety and deploy resources. The Kestrel 3550FW paired with the free Kestrel App combines instantaneous and accurate monitoring and logging of data with the ability to share vital weather information for making the most informed decisions for fire management strategy.
A compact, rugged, waterproof, affordable and simple to use handheld device equipped with data logging functionality and wireless data retrieval for monitoring and reporting, the Kestrel 3550FW can be trusted to deliver accurate environmental data to help deliver fire management and safety plans.
The Kestrel 3550FW delivers accurate measurements of barometric pressure, altitude, dew point, heat stress index, relative humidity, temperature, wind speed and direction, wind chill, temperature and wet bulb readings.

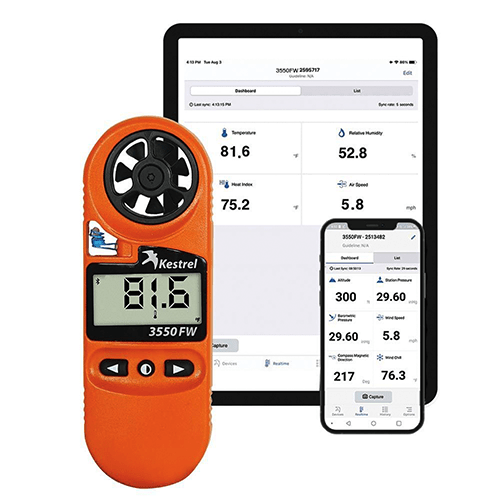

Data can be easily viewed and recorded in real-time on a mobile device with the free Kestrel App.
You can export and send detailed weather reports with GPS location via text or email for vital fire weather data management.
Handheld easy-to-read Probability of Ignition (PIG) and Fine Dead Fuel Moisture (FDFM) reference cards come with every unit.
Mil-SPEC-810G drop tested with an IP67 waterproof rating the Kestrel 3550FW is designed and constructed to withstand the harsh working environment it will encounter. The unit comes with a five-year warranty and certificate of conformity as standard.
Features
• Simple 3-Button Control
• High Contrast, Sunlight Readable Monochrome LCD Display
• Green Backlight
• FREE Kestrel LiNK Software for iOS and Android
• Minimum/Maximum/Average Reading
• Standard user replaceable CR2032 Coin Cell Battery (Average Life 300 Hours)
• Data Hold Function
• Digital Compass
• Date & Time
• Pressure Sensor
• Relative Humidity Sensor
• Temperature Sensor (Patented External Isolated)
• Field Humidity Calibration/Correction Routine
• Kestrel Waterproof PIG (Probability of Ignition) Reference Card Included
• Drop-Tested to MIL-STD-810G
• Neck Lanyard
• Patented Impeller and Sensor Technology (user-replaceable)

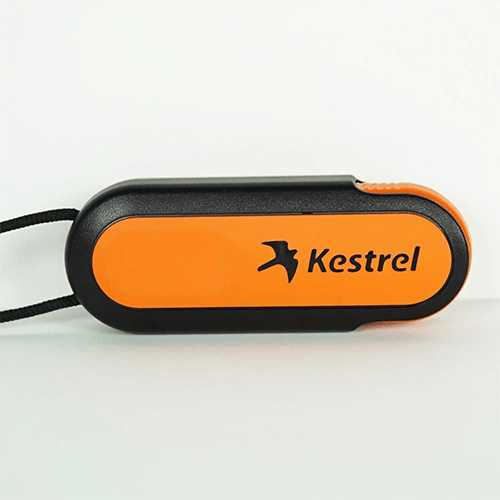

• Slip-On/Off Protective Cover
• Waterproof to IP67 (1m for 30 minutes) and Floats
• Certificate of Conformity
• 5 Year Warranty
Specification
| Primary Measurement | Units | Resolution | Accuracy (+/-) |
Range: Max Operational Specification (if less) |
Notes |
| Wind Speed or Air Velocity |
m/s | 0.1 | Larger of 3% of reading, least significant digit or 20 ft/min | 0.6 to 60.0 m/s 0.6 to 40.0 m/s |
1 inch diameter impeller with precision axle and low-friction Zytel® bearings. Start-up speed stated as lower limit, readings may be taken down to 0.4 m/s | 79 ft/min | 1.5 km/h | .9 mph | .8 kt after impeller start-up. Off-axis accuracy -1% @ 5° off-axis; -2% @ 10°; -3% @ 15°. Calibration drift < 1% after 100 hours use at 16 MPH | 7 m/s. Replacement impeller (NK PN-0801) field installs without tools (US Patent 5,783,753). |
| ft/min | 1 | 18 to 11,811 ft/min 118 to 7,874 ft/min |
|||
| km/h | 0.1 | 2.2 to 216.0 km/h 2.2 to 144.0 km/h |
|||
| mph | 0.1 | 1.3 to 134.2 mph 1.3 to 89.5 mph |
|||
| knots | 0.1 | 1.2 to 116.6 knots 1.2 to 77.8 knots |
|||
| Beaufort | 1 | 0 to 12 B | |||
| Temperature | °F | 0.1 | 1.8 °F | -49.0 to 257.0 -20.0 to 158.0 |
Air, water or snow temperature. Hermetically-sealed, precision thermistor mounted externally and thermally isolated (US Patent 5,939,645) for rapid response. Airflow of 2.2 mph | 1 m/s or greater provides fastest response and reduction of insulation effect. Calibration drift negligible. |
| °C | 0.1 | 1.0 °C | -45.0 to 125.0 -29.0 to 70.0 |
||
| Relative Humidity | %RH | 0.1 | 3.0 %RH | 0.0 to 100.0% 5.0 to 95.0% non-condensing |
Polymer capacitive humidity sensor mounted in thin-walled chamber external to case for rapid, accurate response (US Patent 6,257,074). To achieve stated accuracy, unit must be permitted to equilibrate to external temperature when exposed to large, rapid temperature changes and be kept out of direct sunlight. Calibration drift +/- 2% over 24 months. RH may be recalibrated at factory or in field using Kestrel Humidity Calibration Kit (NK PN-0802). |
| Pressure | inHg | 0.01 | typical 0.04 inHg max 0.07 inHg |
0.30 to 32.48 inHg | Air pressure at the location. Adjustable reference altitude allows display of station pressure or barometric pressure corrected to MSL. Monolithic silicon piezoresistive pressure sensor with second-order temperature correction. Pressure sensor may be recalibrated at factory or in field. Kestrel 2500 and 3500 display continuously updating three-hour barometric pressure trend indicator: rising rapidly, rising, steady, falling, falling rapidly. Kestrel 4000 series displays pressure trend through graphing function. |
| hPa (mb) | 0.1 | typical 1.5 hPa max 2.5 hPa |
300.0 to 1100.0 hPa 10.0 to 1100.0 hPa | ||
| Wind Chill | °F | 0.1 | 1.8 °F | Refer to stated ranges for wind speed and temp. | Perceived temperature resulting from combined effect of wind speed and temperature. Calculated based on the NWS Wind Chill Temperature (WCT) Index, revised 2001, with wind speed adjusted by a factor of 1.5 to yield equivalent results to wind speed measured at 10 m above ground. Specification temperature limits established by WCT Tables. |
| °C | 0.1 | 1.0 °C | |||
| Heat Index | °F | 0.1 | 3.6 °F | Refer to stated ranges for temp. and relative humidity. | Perceived temperature resulting from the combined effect of temperature and relative humidity. Calculated based on NWS Heat Index (HI) tables. (Specification temperature limits established by HI tables.) |
| °C | 0.1 | 2.0 °C | |||
| Wet Bulb Temperature (Psychrometric) | °F | 0.1 | 3.6 °F | Refer to stated ranges for temp., relative humidity and pressure. | Temperature indicated by a wet bulb psychrometer under forced aspiration. Calculated from temperature, relative humidity and pressure. |
| °C | 0.1 | 2.0 °C | |||
| Dewpoint | °F | 0.1 | 3.6 °F | Refer to stated ranges for temp. and relative humidity. | Temperature to which the air must be cooled at a constant pressure for water vapour to condense into water. Calculated from temperature and relative humidity. |
| °C | 0.1 | 2.0 °C | |||
| Altitude | ft | 1 | typical 50 ft max 98 ft |
-2,300 to 85,000 ft | Height above Mean Sea Level (“MSL”). Temperature compensated pressure (barometric) altimeter requires accurate reference barometric pressure to produce maximum absolute accuracy. |
| m | 1 | typical 15 m max 30 m |
-700 to 25,900 m | ||
| Max/Avg Wind | One-button clear and restart of Max Wind Gust and Average Wind measurement by powering down and restarting unit. | ||||
| Display & Backlight | Reflective 5 digit LCD. Digit height 0.36 in / 9 mm. Choice of aviation green or visible red (NV models only) electroluminescent backlight. Manual activation with auto-off. | ||||
| Response Time & Display Update | All measurements except those based on relative humidity respond accurately within 1 second. Relative humidity and all measurements which include RH in their calculation may require as long as 1 minute to fully equilibrate to a large change in the measurement environment. Display updates every 1 second. | ||||
| Clock / Calendar | Real-time hours:minutes clock. | ||||
| Operational & Storage Temperature Range | The operational temperature range of the liquid crystal display and batteries is 14° F to 131° F / -10 °C to 55 °C. Measurements beyond the operational range can be taken by briefly exposing unit to extreme conditions such that the display and batteries remain within the operational range. Storage range -22 °F to 140 °F / -30 °C to 60 °C. | ||||
| Auto Shutdown | After 45 minutes of no key presses. | ||||
| Certifications | CE certified, RoHS and WEEE compliant. Individually tested to NIST-traceable standards (written certificate of tests available at additional charge). | ||||
| Battery | CR2032, one, included. Average life, 300 hours. Battery life reduced by backlight use in 2000 to 3500 models. | ||||
| Environmental | Waterproof (IP67 and NEMA-6). MIL-STD-810F, Transit Shock, Method 516.5 Procedure IV; unit only; impact may damage replaceable impeller. | ||||
| Size & Weight | 4.8 x 1.9 x 1.1 in / 12.2 x 4.8 x 2.8 cm, 3.6 oz / 102 g (including slip-on cover). | ||||
| Colour Options | Yellow | Olive Drab (NV version) | ||||
The manufacturer reserves the right to amend the specification and therefore the information in this document may be subject to change.
