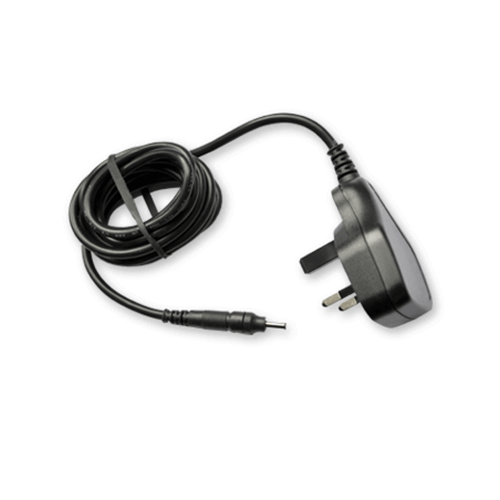

Power Supply 12V

Power Supply 12V

£22.00 ex VAT
£22.00 ex VAT ex VAT
Versand wird beim Checkout berechnet

Features

Specification
Specification Conforms to IEC 60950
Voltage 12 V
Current 270 mA



Characteristics
• Universal input 100 to 240 V AC
• Constant voltage, current limited
• Low leakage current ≤10μA
• Low standby power ≤0.3 Watts
• Continuously short circuit proof



Technical Specification
• Input Voltage 100 to 240 V AC (±10%)
• Input Current approx. 90 mA
• Frequency 50 to 60 Hz
• Efficiency 75% typ. at full load
• EMC Conforms to EN 55011, EN 55014, EN55022/B, FCC 47 part 15, EN 61000-3-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
• Output Voltage Tolerance ±5%



Environmental Specification
• Operating Temperature 0 to 40°C at maximum load
• Storage Temperature -20 to 70°C
• Humidity 5% to 95% non condensing
• Input Transient Susceptibility Complies with IEC61000 requirements



Reliability Specification
• MTBF Calculation 200.000 hours at maximum load and an ambient temperature of 25 °C (in accordance with MIL-HDBK-217)



Mechanical Specification
• Weight approx. 60g

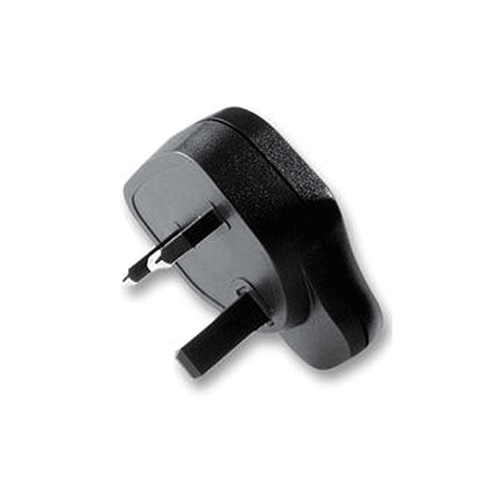

• Plug Connector AC input: UK DC output: Universal output plug system
