RS485 Cable with connector for WindSonic and MaxiMet GMX sensors

Name: RS485 Cable with connector for WindSonic and MaxiMet GMX sensors
Brand: Richard Paul Russell
Price: 99.6 GBP
Availability:  InStock

£99.60 ex VAT

£99.60 ex VAT ~~ex VAT~~

Versand wird beim Checkout berechnet

Anzahl

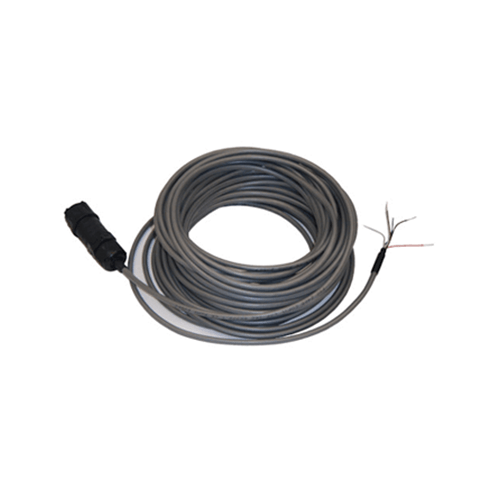

The WindSonic RS232 Cable & Connector Cable is premade with the WindSonic/MaxiMet Connector already attached to make installation a fast and simple process. Compatible with the WeatherFile Communication Unit (WCU), WS-15A Display or SpaceLogger data loggers and other equipment requiring an RS232 cable connection. Please contact us for cables for WindSonic M option 3, GMX560, WindUltra and other Gill sensors.

The cable is a high quality 5 core, PVC insulated with aluminium/polyester foil screen.ssssss

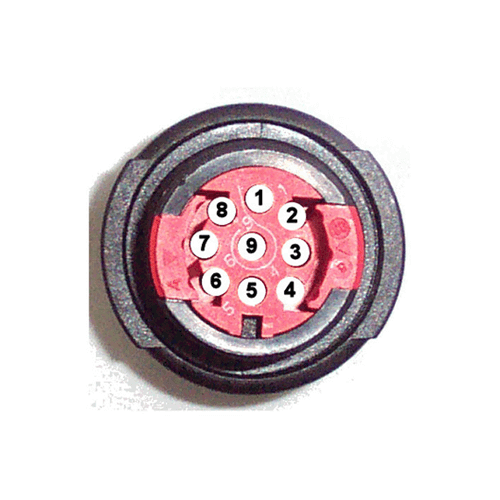

RS232 Gill WindSonic 1 & Gill GMX (MaxiMet) Wiring Connections

Gill Windsonic 1 (WS1) Sensor Plug Pin	Gill GMX Sensor Plug Pin	Signal	Core Colour	WS-15A Termination	WeatherFile Communication Unit (WCU) Termination
1	1	Signal Ground	Brown	Terminal 9	12 Way Connector 5
2	3	Power Ground	Black	Terminal 7	12 Way Connector 6
3	2	+V Supply to Sensor	Red	Terminal 8	12 Way Connector 7
5	5	RS232 from Sensor	White	Terminal 10	12 Way Connector 4
7	7	RS232 to Sensor	Green	Not Connected	12 Way Connector 8
		Screen	Clear	Terminal 6	3 Way Connector – Centre

WindSonic RS485 Cable & Connector Description

The WindSonic RS485 Cable & Connector Cable is premade with the WindSonic Connector already attached to make installation a fast and simple process. Compatible with the WeatherFile Communication Unit (WCU), WS-15A Display or SpaceLogger data loggers and other equipment requiring an RS485 cable connection.

RS485 Gill WindSonic 2, 3 & Gill GMX (MaxiMet) Wiring Connections

Gill WindSonic Sensor Plug Pin	Signal	Core Colour	WS-15A Termination	WeatherFile Communication Unit (WCU) Termination
3	Power Ground	Black Twisted Red	Terminal 7	12 Way Connector 6
2	+V Supply to Sensor	Red	Terminal 8	12 Way Connector 7
5	RS485 to Sensor	Black Twisted White	Terminal 5	12 Way Connector 10
4	RS485 from Sensor	White	Terminal 4	12 Way Connector 9
Not Connected	Screen	Clear	Terminal 6	12 Way Connector 5

Physical Dimensions	Diameter	6mm
	Length:	20m 40m 60m 100m 150m or 200m options
	Weight:	20m: 0.85kg approx 40m: 1.65Kg approx 50m: 2.55kg approx 100m: 4kg approx 150m: 6kg approx 200m: 7.9kg approx
Construction	2x2x24(7) AWG twisted pair, overall screened, grey cover

The manufacturer reserves the right to amend the specification and therefore the information in this document may be subject to change.
