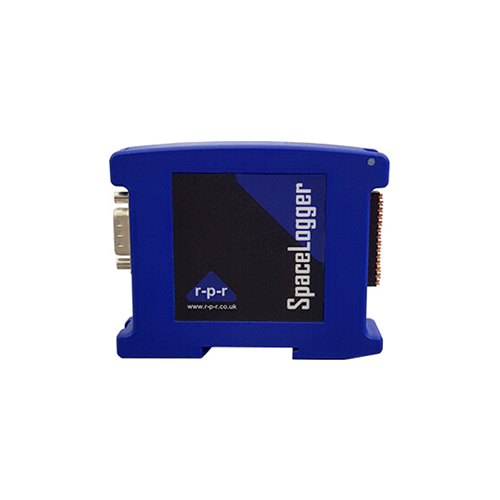

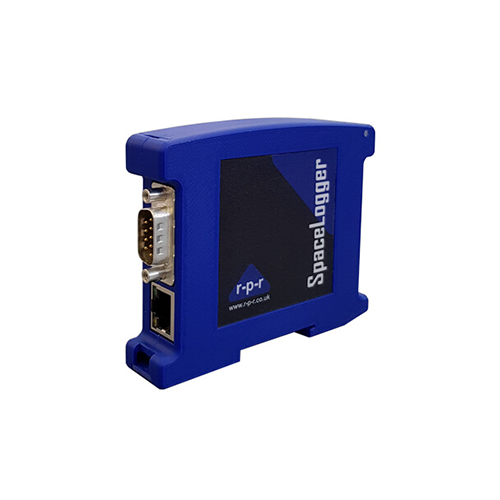

SpaceLogger S100

Overview

The SpaceLogger.S100 data logger is an ethernet connected logger for recording serial data from sensors and equipment.

The SpaceLogger.S100 has the advantage of allowing you to simultaneously monitor and record from 2 sources: one port is for RS232 or RS422/485 data, and the second port is for RS232 data. The logger has the ability to record data at up to around 5000 bytes/second, which is date and time stamped.

Data from the SpaceLogger.S100 can be viewed in real-time across your local area network, with the data also recorded in daily .csv or .txt files on the SpaceLogger’s micro SD card.

The SpaceLogger.S100 is a small compact device, with very low power consumption, that can be directly DIN rail mounted or can be supplied with an ABS mounting plate.

The SpaceLogger.S100 is designed to be fully customisable to suit a diverse range of customer requirements. Please talk to us about your application.
SpaceLogger.S100 schematic application

SpaceLogger.S100 schematic application

Applications

Typical data logging applications include:
• Air quality systems
• Communications equipment
• Decontamination washers/sterilisers
• Education and Research projects
• Energy usage monitoring
• Labelling systems
• Wind and Weather monitoring
• Weighing systems
• Back-ups of sensitive data

Specification

Documentation

Data Sheet
