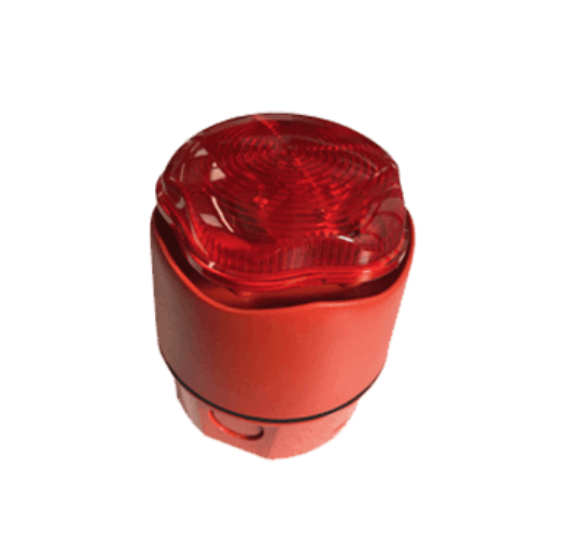

The WeatherFile Dual Alarm unit combines a multi-tone alarm with a sound output up to 101dB(A) @ 1m, tone is adjustable with 32 options. The high intensity red flashing (other colours available on request) LED has a flash frequency of once per second. The unit is housed in a durable ABS plastic enclosure with PC lens.
When connected to the WS-15A Display, the wind speed alarm is configurable as either a high or a low alarm and to avoid false alarm events, there are adjustable hold-off-and-hold-on times as shown below:
The alarm unit is IP66 rated, dustproof and suitable for outside conditions with sufficient waterproofing to offer protection in extreme weather conditions. The unit is supplied complete with a sealed gland and a 3m cable length.
Typical Applications
• Tower crane wind monitoring
• Construction site health & safety
• Festivals & events
• Waste & recycling
• Aviation operations
• Transport – roads, bridges & tunnels
• Weather & wind warning alert
Features
• Versatile compact audible and visual alarm unit
• IP66 rated, suitable for indoor and outdoor use
• Red flashing LED, flash frequency of once per second
• High 101dB sound output
• Supplied complete with sealed gland and 3m cable
• Adjustable tone (32 options)
• Compatible with alarm output of WS-15A Display
• Configurable via WS-15A Display as either high or low wind speed alarm
• Low current consumption
• Surface mounting via fixing screws
• Optional magnetic feet for alternative quick mounting (at extra cost)
Specification
| Physical |
Dimensions |
Diameter: 93mm
Depth: 110mm |
| Weight |
0.35 kg (including 3m cable) |
| Mounting |
Surface Mounted |
| Colour |
Red |
| Output |
Flash Colour |
Red |
| Light |
>0.5Cd |
| Sound |
101dB(A) (Typical Tone 3) |
| Volume Control |
20dB |
| Sound Tones |
32 |
| Power |
Power requirements |
19mA at 9-28Vdc (Typical Tone 3) |
| Connection |
Internal terminals |
| Environmental |
Operating Temperature |
-10 to +55 °C |
| Sealing |
IP65 rated |
Documentation
Data Sheet
