WeatherFile Power Supply Unit Description

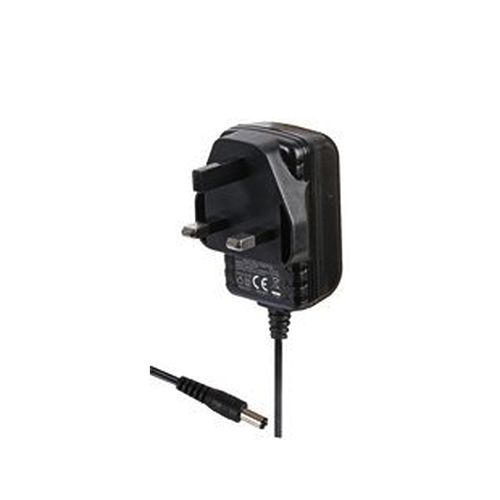

The 12V DC mains power adaptor is supplied with a 3m cable and female IP67 rated snap-in Binder connector as standard, making connection to the WeatherFile Communication Unit (WCU) a fast and simple process. The power supply is RoHS compliant, please see specification tab for full details.
The WeatherFile Power Supply Unit is used to power WeatherFile systems via the WeatherFile Communication Unit (WCU). If your WeatherFile or FlexiMet system is powered though a WS-15A display directly please see the FlexiMet Power Supply Unit.
RPR Ltd can supply bespoke cable lengths and connectors on request, please contact our technical team on +44 (0) 1590 641223 or email sales@r-p-r.co.uk to discuss your requirement.
Features
• Single Fixed Output
• Efficiency Level: VI
• 2.1mm × 5.5mm × 12mm DC Connector Polarity +ve Centre
• UK Plug Type
• Snap-in female 720 series Binder cable connector, IP67 rated
Specification
| Input Voltage | Rated Input Voltage : 100V to 240V AC Variable Input voltage : 90V to 264V AC Input Current : 0.4A Max. (When input rated voltage and output rated load) |
| Input Frequency | Rate Frequency : 50/60Hz Variation Frequency : 47 to 63Hz In-rush Current : 60 Amps Max. Cold start at 240V AC input, with rated load and 25°C ambient AC leakage Current : 0.25mA Max . At 240V AC input Rated Output Power : 12W Output Voltage : 12V Output Current : 1A Output Power : 12W Operating Temperature : 0°C to +40°C Storage Temperature : -10°C to +55°C |
| Binder 720 series female connector plug | Snap-in female cable connector, IP67 rated Custom overmolded Series 720 assembly Internal strain relief High performance, with gold-plated contacts |
The manufacturer reserves the right to amend the specification and therefore the information in this document may be subject to change.
