SpaceLogger S100C
SpaceLogger S100C
Features
- Continuous, automatic recording of serial data from sensors and equipment
- Enables cloud data storage via the logger’s wired ethernet connection
- 2 ports for RS232/422/485 inputs
- Real-time clock, with battery back-up, for date and time stamping of data
- DIN rail mounting provision
- Compact, economical and robust design
- Customisation options – talk to us about your application
Share
Overview

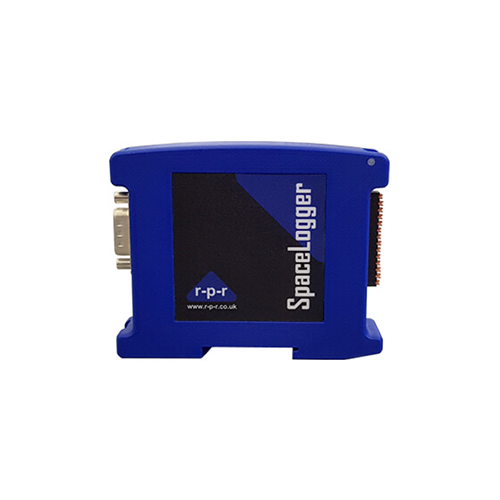

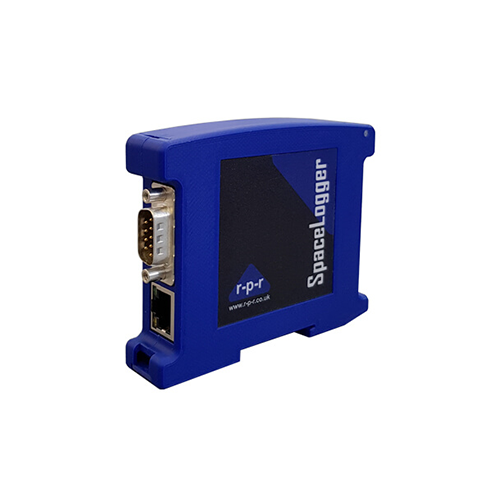

The SpaceLogger.S100C is an ethernet connected serial data logger that facilitates cloud data storage with real-time data viewing from any internet connected device.
This provides for reliable remote viewing of data from sensors or machinery without the potentially unacceptable downtime likely to occur when using Wi-Fi. Particularly relevant to applications handling safety critical data.
The SpaceLogger.S100C has the advantage of allowing you to simultaneously monitor and record from 2 sources: one port is for RS232/422/485 data, and the second port is for RS232 data. The logger has the ability to record data at up to around 5000 bytes/second, which is date and time stamped.
If the logger’s ethernet connection is temporarily unavailable this is not an issue as the data would be stored on the loggers microSD card and automatically transferred to the LAN/Cloud on re-connection.
The SpaceLogger.S100C is a small compact device, with very low power consumption, that can be directly DIN rail mounted or can be supplied with an ABS mounting plate.
The SpaceLogger.S100C is designed to be fully customisable to suit a diverse range of customer requirements. Please talk to us about your application.
Applications
• Air quality systems
• Manufacturing systems
• Communications equipment
• Water, wastewater & gas systems
• Energy management
• Agriculture and horticulture
• Equipment operation verification
• Logistics
• Weighing systems
• Security systems
• Back-ups of sensitive data
• Education & Research projects
Specification
| Physical | Dimensions | Width: 100 mm Depth: 80 mm Height: 22 mm |
| Weight | 100g | |
| Enclosure material | ABS with polycarbonate cover | |
| Mounting | 35mm DIN rail mount, plus optional abs base plate mount | |
| Serial Data Input | Number of channel | 2 |
| Transmission standard | Port 1: RS232 or RS422/485, Port 2: RS232 | |
| Transmission speed | 2,400 to 115,200 baud | |
| Flow Control | Port 1: Hardware (RTS/CTS) or software flow control | |
| Connection | 14-way pluggable terminal block, 9-way D-type or OEM specific – talk to us to discuss your equipment’s compatibility | |
| LAN Connectivity | Wired connection | RJ45 connector 10/100 Base-T |
| Data Visibility | Data access | Cloud Storage & access capable |
| Data Storage | Data storage card | Removable micro SDHC/SDXC card |
| Data capacity | Capacity of micro SDHC/SDXC card installed (max. 2TB) 8Gb micro SDHC supplied as standard |
|
| Card removal | Buffer purge button | |
| Audible / Visual Indicators |
LED Indicators | Micro SDHC card status: Bi-colour red/green Data/LAN connectivity status: Bi-colour red/green |
| Audio Bleeper | Status alert | |
| Real Time Clock | Accuracy | ±40 ppm at 25°C |
| RTC back-up battery | CR2032 | |
| Power | Power requirement | 5 Vdc ±10% |
| Current at 5Vdc | 200 mA typical | |
| Connection | Micro USB connector, 14-way pluggable terminal block | |
| Environmental | Temperature range | Operating: -25°C to +70°C Storage: -40°C to +70°C
CE marked – EMC directive 2014/30/EC |
| Emissions | EN 55032:2015 CISPR 32:2015, Class B | EN 60945:2002 CISPR 16-1:1999, Class B | EN 61000-3-2:2014 Class A | EN 61000-3-3:2013 FCC/CFR 47: Part 15:2017 ANSI C63.4:2014, Class A Canadian Standard ICES-003:Issue: CISPR 22:2008 |
|
| Immunity | EN 55024:2010 | EN 61000-4-2:2009, EN 61000-4-3:2006 incl A1:2008 & A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2012, EN 61000-4-6:2014, EN 61000-4-11:2010
WEEE Directive 2012/19/EU |
|
| Guarantee | Period | 1 year warranty |
